Universal Engine Control Cables

SKU:

RWB7506

Category:

Control Cables

Supplier:

R W B Marine

$0.00

Description:

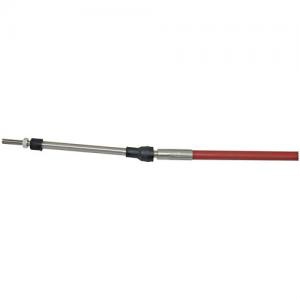

Universal Control Cables
A universal cable with red jacket similar to Morse 33c type cable 8.5mm diameter outer jacket
10-32 UNF stainless steel threaded ends. Suits inboard and outboard motor applications.
For very long or complex runs use premium cables below. SIze range 6 feet (1.83m) to 25 feet (7.62m) RWB 7500-7519

Additional Info:

Measuring Control Cables

For a new installation, measure A & B distance from the control box along an unobstructed route to throttle or clutch connection on the motor. For outboard engines add a further three feet to allow movement. Round this dimension up to the next whole foot.

For replacement cables, measure the existing cable from tip to tip in feet and round up to next whole foot. Any cable bends should always have a minimum diameter of 8" 200mm.

The multiflex range of engine control cables are made from non-corrosive materials. Lubricated stainless steel inner cable for maximum efficiency , stainless steel or brass end fittings with reinforced outer poly jacket. Suits stern drives, inboards. Minimum bend radius 150mm
