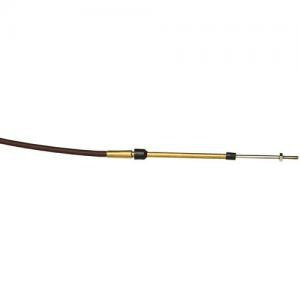

Universal Engine Control Cables

SKU:
RWB7500
Category:
Supplier:
$0.00
Description:

Measuring Control Cables
For a new installation, measure A & B distance from the control box along an unobstructed route to throttle or clutch connection on the motor. For outboard engines add a further three feet to allow for engine movement. Round this dimension up to the next whole foot. For replacement cables, measure the existing cable from tip to tip in feet and round up to next whole foot. Any cable bends should always have a minimum diameter of 8" 200mm.

Excel Cab engine control cables are made from non-corrosive materials Lubricated stainless steel inner cable for maximum efficiency, stainless steel or brass end fittings with reinforced out poly jacket. Suits stern drives, inboards and outboards. Minimum bend radius 150mm.

Delivery: approx 3 working days

Additional Info:

RWB7500 Medium duty cable with 8.5mm dia outer jacket. 10-32 UNF stainless steel threaded ends, Suits inboard and outboard motor applications. For very long or complex runs use premium cables.
